News
Inspecting holes and cavities is a challenging task which needs to be solved in many different industries, such as food and beverage, pharma and automotive.
PCBP Series

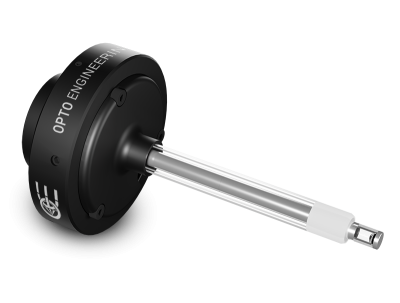

We have added the new PCBPN013 boroscopic probe for inspecting small cavities from the inside, down to 5.5 mm available with or without integrated illumination and the new PCBP023 lens for 5 Mpx cameras.
| Part Number | Description |
|---|---|
| PCBP013 | Boroscopic probe for 1/3″ detectors |
| PCBP012 | Boroscopic probe for 1/2″ detectors |
| PCBP023 NEW | Boroscopic probe for 2/3" detectors |
| PCBPN013 NEW | Boroscopic probe for 1/3" detectors, 4 mm probe diam |
| PCBPN013-WG NEW | Boroscopic probe for 1/3" detectors, 7 mm probe diam, with waveguide module |
PCHI Series

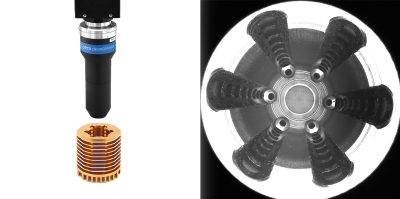

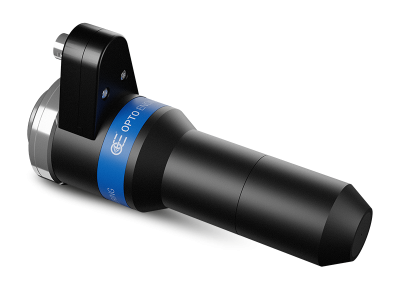

We have added PCHI023-AF, hole inspection lens for inside inspection of cavities down 10 mm with a built-in liquid lens module for fast and reliable diameter changes, and the new PCHI023-MF that improves the manual focusing mechanism with a more user-friendly “FFL-like” lockring.
| Part Number | Description |
|---|---|
| PCHI013 | Hole inspection optics for 1/3″ detectors |
| PCHI012 | Hole inspection optics for 1/2″ detectors |
| PCHI023 | Hole inspection optics for 2/3″ detectors |
| PCHI023-MF NEW | Hole inspection optics for 2/3" detectors, lock-ring focusing |
| PCHI023-AF NEW | Hole inspection optics for 2/3" detectors, adaptive lens focusing |
Contact us
To receive more information about PCHI SERIES, PCBP SERIES and our range of 360° OPTICS, please contact our sales engineers.
