| Specifications | ||
| Dimensions | (mm x mm) | 245 x 196 |
| Thickness | (mm) | 5 |
| Active area | (mm x mm) | 237.6 x 189.0 |
| marging | (mm x mm) | - |
| Squares width | (mm) | 1.35 |
| Photomask type | (mm) | Film-on-glass |
| Substrate | (mm) | Soda lime glass |
| Surface quality (MIL-13830B) | - | |
| Class (1) | - | |
| Grade (1) | 4 | |
| Certificate (2) | No | |
Last update 20 Feb 2024
Notes
- Class number (2*) for Emulsion-on-glass photomasks differs from usual Chrome-on-glass. Specifications are in the tech info section.
- Download CoC Format Pattern facsimile
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Request a quote
Add this product to the quote request list.

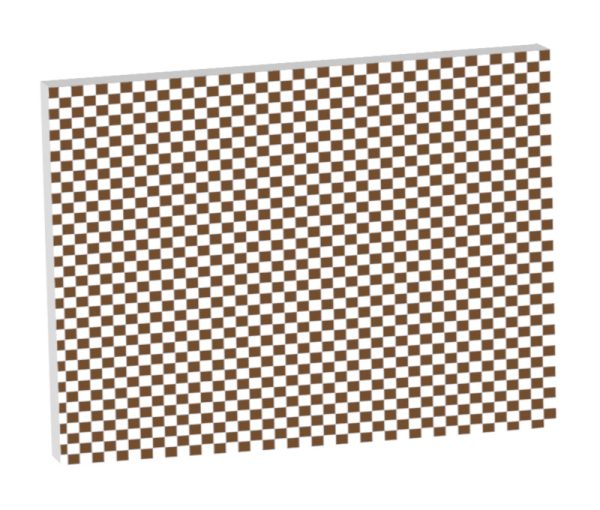

Product images
