| Main optical specifications | ||
| Focal length | (mm) | 8 |
| Magnification (1) | (x) | 0.026 |
| Image circle diameter | (mm) | 16.0 |
| Max sensor size | 1″ | |
| Angle of view | ||
| 1/2” | (deg) | 52.3 |
| 2/3” | (deg) | 68.6 |
| 1” | (deg) | 90.1 |
| Object field of view | ||
| 1/2” (1) | 246.15 x 184.62 | |
| 2/3” (1) | 326.92 x 272.69 | |
| 1” (1) | 478.46 x 378.08 | |
| Advanced optical specifications | ||
| Working distance range (2) | (m) | 0.3 - inf |
| ƒ/N | 1.8 - close | |
| Back focal length | (mm) | 12.70 |
| Distortion on 1/2" (3) | (%) | 2.14 |
| Distortion on 2/3" (3) | (%) | 3.25 |
| Distortion on 1" (3) | (%) | 4.12 |
| Mechanical specifications | ||
| Iris control | Manual | |
| Focus control | Manual | |
| Mount | C | |
| Filter thread | - | |
| Outer diameter | (mm) | 56.8 |
| Length (4) | (mm) | 67.0 |
| Mass | (g) | 77 |
| Environmental specifications | ||
| Operating temperature | (°C) | -10-+50 |
Last update 26 Jul 2023
Notes
- Calculated at minimum object distance.
- Working distance: distance between the front end of the mechanics and the object.
- Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
- Measured from the front end of the mechanics to the camera flange at infinite focusing.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA89-GM-10C
Area scan camera 4112 x 2176 MP, Sony IMX267, CMOS Global shutter, 1", Mono, 1 GigE, POE, C mount
ITA89-GC-10C
Area scan camera 4112 x 2176 MP, Sony IMX267, CMOS Global shutter, 1", Color, 1 GigE, POE, C mount
Request a quote
Add this product to the quote request list.

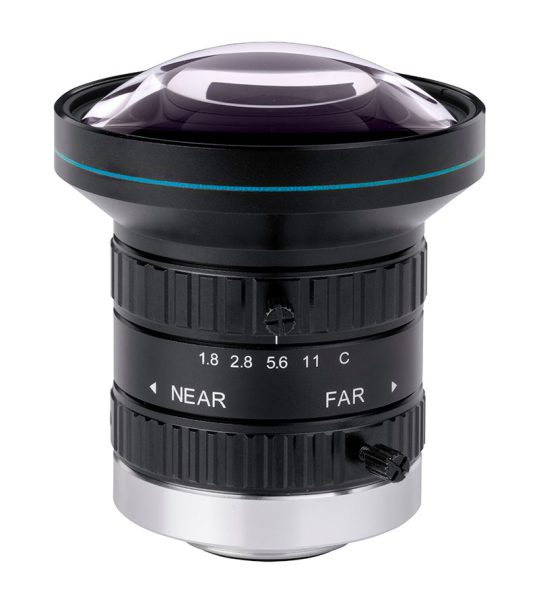

Product images
