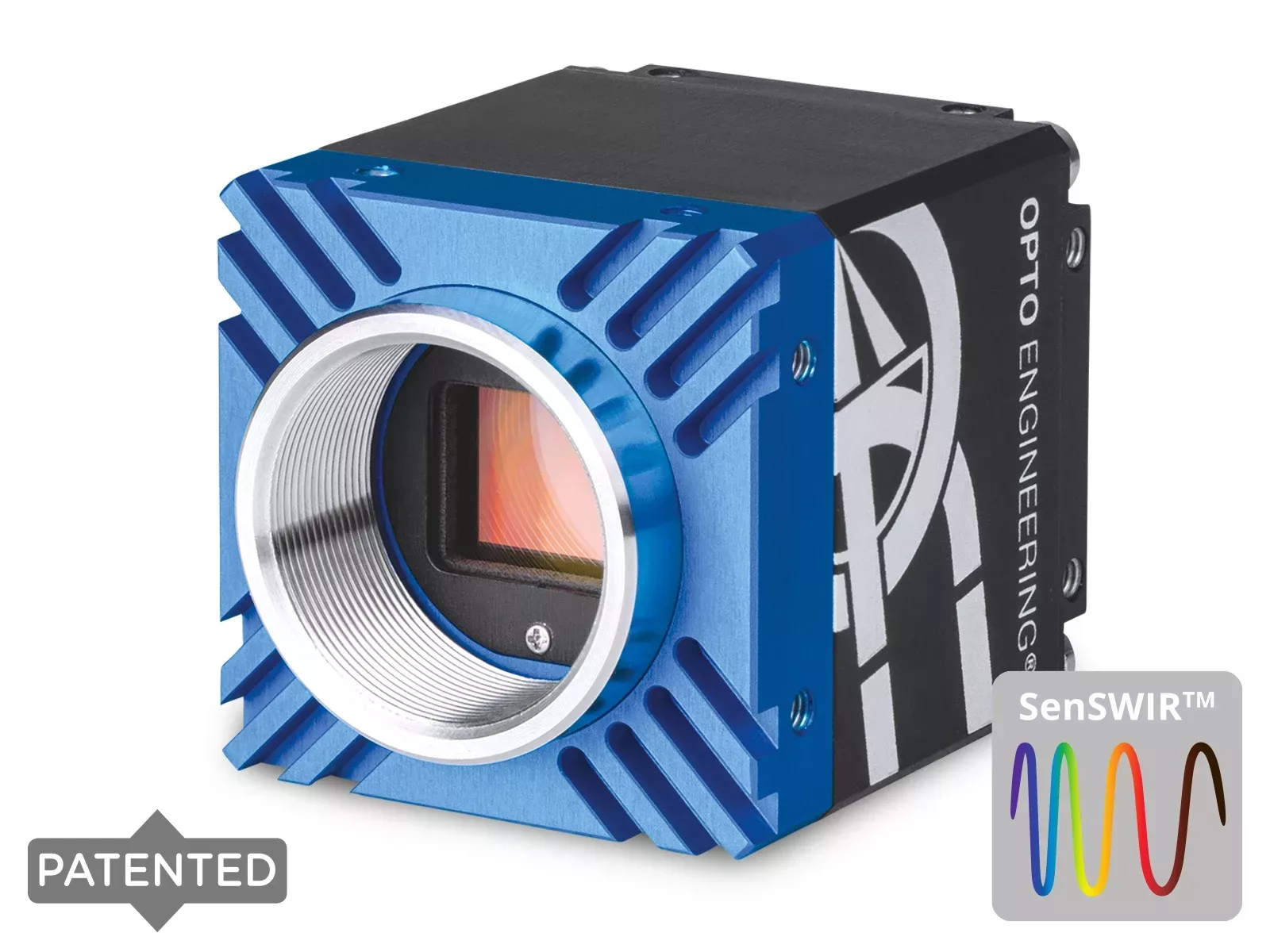

ITALA G.SWIR series
Industrial GigE vision VIS-SWIR PoE cameras
Dual use product subject to export control. Please read carefully this document about export regulations.
ITALA G.SWIR is a series of GigE vision PoE industrial cameras capable of detecting both visible and short wave infrared (SWIR) light from 400 to 1,700 nm using Sony's SensSWIR™ InGaAs technology.
These cameras enable a wide range of applications in high resolution spanning from semiconductors precision positioning (SWIR light penetrates silicon wafers) to food inspection (water absorbs light at a wavelength equal to 1450 nm)
ITALA G.SWIR cameras are designed and manufactured in Italy by Opto Engineering®, combining a robust and reliable design with advanced functionalities.
Key advantages
Image acquisition in the visible and short-wave infrared spectrum up to 1.7 µm
Cameras designed and manufactured in Italy by Opto Engineering®.
- Aluminum body & steel lens mount.
- Shock & Vibration certified.
- Wide temperature range.
- Large on-board image buffer
Never miss a frame and take advantage of burst mode acquisition. - High performance FPGA
Additional on-board processing functions can be easily implemented.
Isolated PoE supply
Simplified cable harness with data and power over a single cable.
Broad Range of I/Os

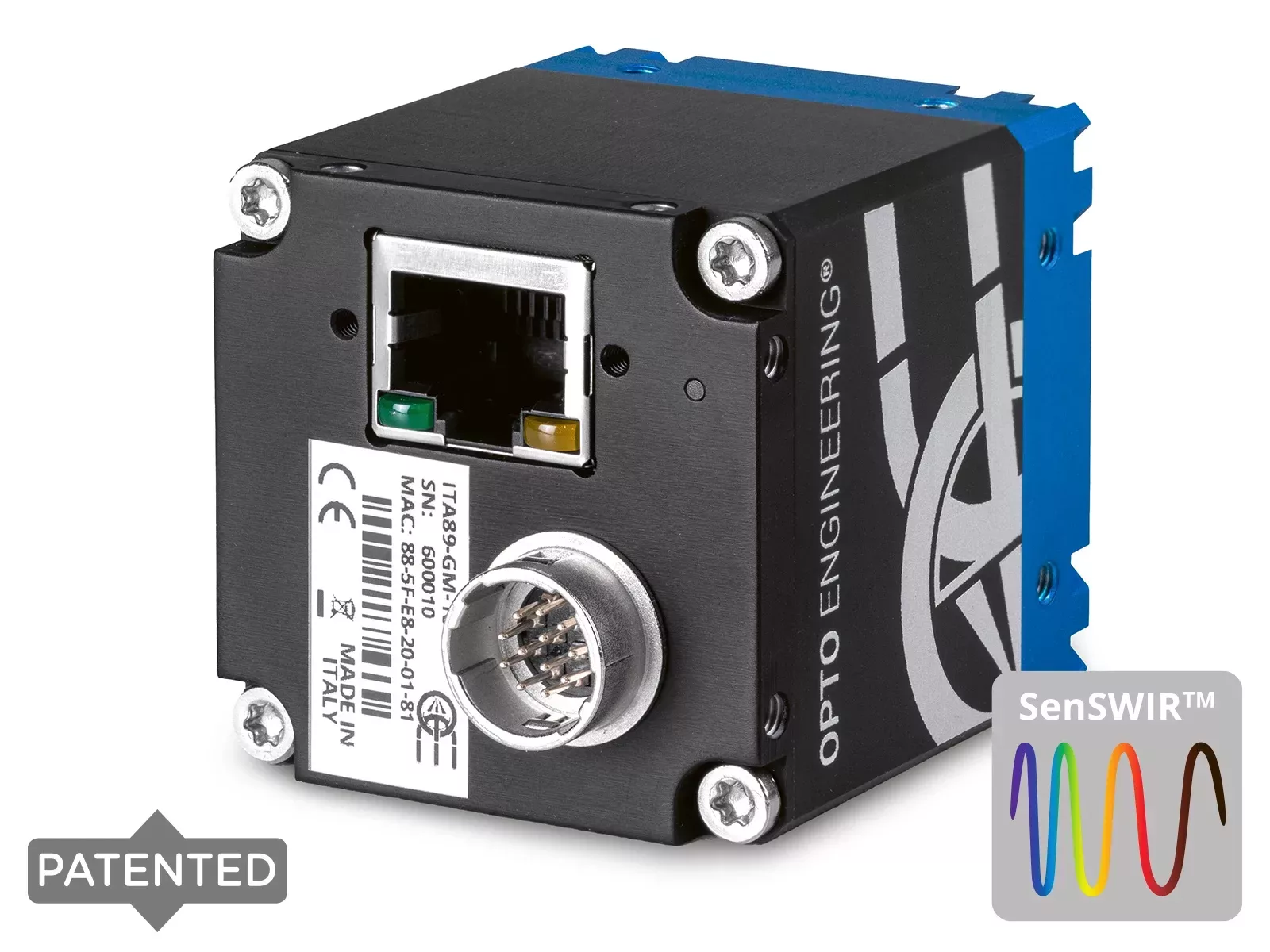

Industry standard Hirose 12 pin connector for a broad range of I/Os and special functions.
Serial Communication
Combo RS232/485 transceiver for maximum flexibility.
- A 5-years warranty
- Dedicated support for the integration directly from the manufacturer
Industries
Guaranteed quality
All the features of our cameras are check to ensure perfect operation.
Each camera undergoes severe testing to avoid possible early failures.
We check the sensor alignment of each camera to ensure maximum performance.
Each camera is tested according to the EMVA1288 standard.
Notes
- Measured with 24V power supply
- Case temperature, measured on the front part of the camera body
- Ambient temperature
Ordering information
Software
Advanced functionalities for demanding applications
Sensors
Connectivity
Fast acquisition
Data acquisition
Multi-camera systems
Programming languages & OS
ITALA SDK
The ITALA SDK (Software Development Kit) is a robust and easy-to-use API designed from scratch to support all ITALA® cameras. The compliance to the GenICam standard grants easy and precise configuration and control of cameras thanks to GenTL. Moreover, the ITALA SDK features up-to-date SFNC nomenclature and supports event interface to create deterministic camera operation and chunk data to provide meta-data on the acquisition
Key features
- Robust, easy-to-use C++, C, C# and Python API
- Extensive documentation with practical code examples showing common and advanced use cases
- Standardized camera control via familiar GenApi implementation
- Up-to-date SFNC feature names
- Event interface and chunk data support
- Utilities for camera network configuration and firmware updates
- NDIS filter driver improves streaming stability and CPU usage
- Fully featured GUI viewer for camera control, streaming and monitoring
- Camera settings download from device to file and vice versa
- Support for Windows and Linux OS
Please find more information on the extensive functions of the ITALA API in the ITALA SDK documentation available in the installation directory.
ITALA View
ITALA View is a GUI tool which allows the evaluation, configuration and troubleshooting of ITALA® cameras. With a comprehensive set of utilities and wizards, Itala View speeds up the evaluation and deployment of a vision system built around ITALA cameras.
With reference to the image below, the main window of Itala View can be divided in different functional areas:
- Menu bar, to access the settings, tools and wizards of the application
- Device discovery, with the NICs of your computer and the cameras connected to them
- Device information and control
- Video streaming
- Image data analysis and logging
- GenICam feature tree
From the Tools menu you can access two important utilities:
- IP configurator, to efficiently address network configuration issues of Itala cameras, including but not restricted to:
- Camera and NIC set with persistent IPs but different subnets
- Camera and NIC set with persistent IPs but different subnet masks
- Camera set in DHCP mode and NIC set with a persistent IP
- Camera set with a persistent IP and NIC set in DHCP mode
- Firmware update, where you can install firmware files after downloading them from Opto Engineering website
From the Wizard you can access three important utilities:
- LUT wizard, to view and edit the LUT of the selected camera which allows the user to set a transformation at a pixel level
- Defective pixels correction wizard, to perform a custom pixel correction that takes into account environmental factors which can increase the amount of defective pixels during the camera life
- Color correction wizard, to calibrate the camera in specific light conditions with a reference color and obtain an optimal color rendering
Third party software compatibility
Itala cameras are compliant to GigEVision and GenICam standards, allowing easy integration with third party vision software. In addition, the SDK includes a GenTL producer (.cti file) compliant with the GenTL specifications hosted by EMVA. This further enhances the interoperability with other compliant devices and software.
The list of compatible third party software includes, but it’s not limited to:
- FabImage® by Opto Engineering
- VisionPro by Cognex
- Halcon by MVTec
- Merlic by MVTec
- LabVIEW by National Instruments
- Aurora Design Assistant™ by Zebra
- Aurora™ by Zebra
