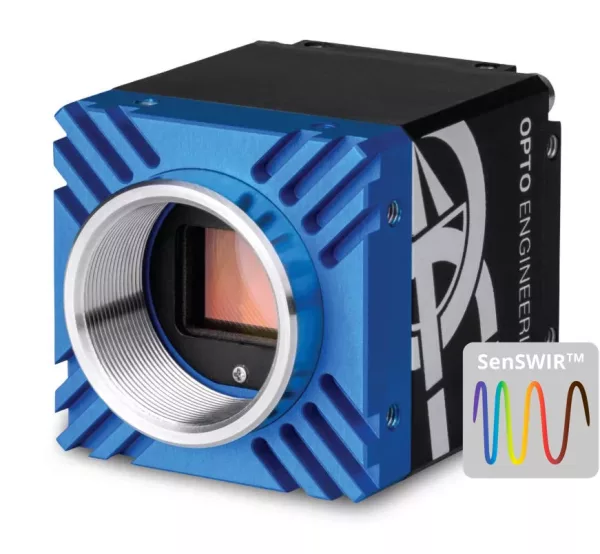

ITA13-GM-10C-SWIR

Specifications

EMVA 1288 Data

Downloads

Compatible products

Sensor specifications
Megapixel		1.3
Resolution		1296 x 1032
Sensor format		1/2"
Sensor diagonal	(mm)	8.2
Pixel size	(μm)	5.00
Sensor model		IMX990
Sensor type		CMOS
Shutter		Global
Chroma		VIS-SWIR

Camera specifications
Filter		AR glass
Frame rate	(fps)	87.8
Burst frame rate	(fps)	125.2
Exposure time		2.96 μs - 10 s
ADC resolution	(bit)	10/12
Dynamic range	(dB)	56.5
Gain range	(dB)	0-48
SNR	(dB)	52.2
Image buffer	(MB)	384
Image processing		Binning, decimation, ROI, gamma, black level, LUT, defective pixel correction
Pixel formats		Mono 8/ 10p/ 10Packed/ 12p/12Packed
Chunk data		yes
User sets		3
Timers/Counters		2/4
Synchronization		Free run, software trigger, hardware trigger, PTP (IEEE 1588)

Connectivity and electrical specifications
Data connector		RJ45
Data interface		1 GigE
I/O connector		12-pin Hirose
I/O interface		2x opto-isolated input, 4x opto-isolated output
Serial interface		RS232, RS485
Liquid lens controller		no
Encoder interface		yes, incremental
Power supply	(V)	12-24, PoE (IEEE 802.3af class 2)
Max power consumption (1)	(W)	4.0

Compliance and reliability
Standards		GigE Vision 2.2, GenICam, GenTL
Client software		ITALA View or other GigE Vision 2.x software
Operating systems		64-bit Windows 10/11, Ubuntu 18.04/20.04/22.04
Shock and vibrations		EN 60068-2-27, EN 60068-2-6, EN 60068-2-64
Warranty	(years)	5

Mechanical specifications
Mount		C
Dimensions	(mm)	40.5 x 40.5 x 51.2
Clamping system		16x M3 threaded holes (on all sides)
Mass	(g)	142

Environmental specifications
Operating temperature (2)	(°C )	-25 - +65
Storage temperature (3)	(°C )	-10 - +60
Operating relative humidity	(%)	20-80, non condensing
IP rating		IP30

Last update 21 Jun 2024

Notes

Measured with 24V power supply
Case temperature, measured on the front part of the camera body
Ambient temperature

Ordering information

Dual Use product subject to export control. Please, ask for more information.

All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

EMVA1288 Data
Quantum efficiency	(%)	112.2
System gain	(DN/e-)	0.023
SNR	(dB)	52.2
Dynamic range	(dB)	56.5
Sensitivity threshold	(e-)	248.8
Saturation capacity	(e-)	165924
Dark current	(e-/s)	1205.3
Temporal Dark Noise	(e-)	248.0
Dark Signal Non-Uniformity (DSNU)	(e-)	370.5
Photo Response Non-Uniformity (PRNU)	(%)	0.7
Linearity Error	(%)	-1.41 / 0.64

Last update 21 Jun 2024
