| Lighting specifications | ||
| Modules | 10 | |
| Illumination area length | (mm) | 2000 |
| Illumination area height | (mm) | 20 |
| Focusing | far | |
| Optimal working distance | (mm) | 100-200 |
| Number of LEDs | 480 | |
| Light color, peak wavelength | white, 6200 K | |
| Illuminance (1) | (klux) | n.a. |
| Diffuser | yes | |
| Electrical specifications | ||
| Supply voltage (2) | 24 | |
| Current | (A) | 30 |
| Power consumption | (W) | 720 |
| Estimated MTBF (3) | (hours) | > 20000 |
| Power connector | 2x WEIPU SP2110/P2 | |
| Power cables | 2x CBLT008 included | |
| I/O connector | M12, 5 pins | |
| I/O cables | CBLT009 included | |
| Mechanical specifications | ||
| Length | (mm) | 2050 |
| Width | (mm) | 75 |
| Height | (mm) | 128 |
| Mass | (g) | 18000 |
| Clamping system | 4x M10 threaded holes | |
| Cooling method | fan | |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Installation | Indoor use only | |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Risk group 2 | |
Last update 03 Aug 2023
Notes
- Measured at minimum working distance
- ± 2%.
- Drop to 50% intensity @ 25°C.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
Request a quote
Add this product to the quote request list.

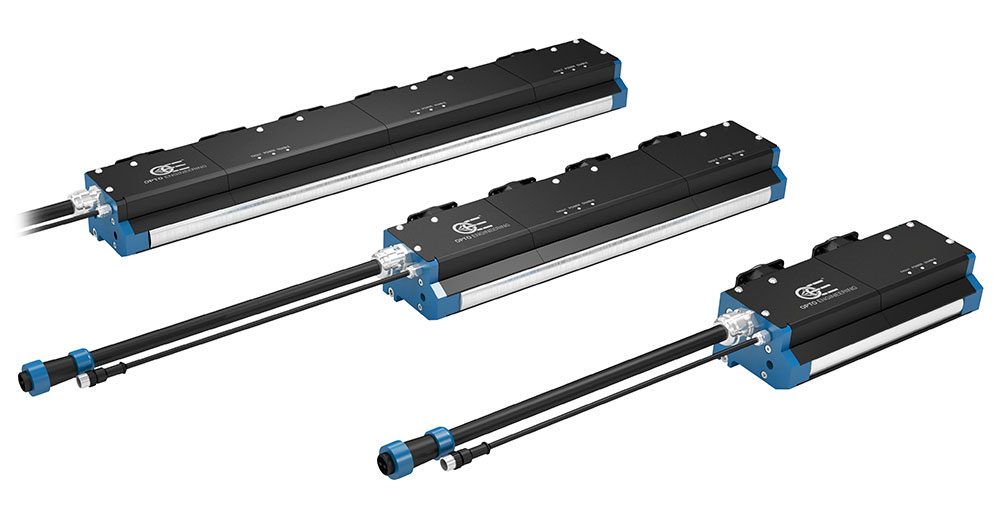

Product images
