| Main optical specifications | ||
| Image circle diameter | (mm) | 4.8 |
| Min sensor size | 1/2'' | |
| Field of view (diameter x height) | ||
| Minimum | (mm × mm) | 30.0 x 20.0 |
| Maximum | (mm × mm) | 50.0 x 5.0 |
| Advanced optical specifications | ||
| Working distance with minimum object (1) | (mm) | 40.0 |
| Working distance with maximum object (1) | (mm) | 20.0 |
| Angle of view | (deg) | 45 |
| ƒ/N | 1.4 - close | |
| Mechanical specifications | ||
| Mount | C | |
| Length (2) | (mm) | 231.8 |
| Front diameter | (mm) | 117.0 |
| Mass | (g) | 907 |
Last update 02 Oct 2023
Notes
- Working distance: distance between the front end of the mechanics and the object.
- Measured from the front end of the mechanics to the camera flange.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
ITA32-GM-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA32-GC-10C
Area scan camera 2064 x 1544 MP, Sony IMX265, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
ITA51-GM-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Mono, 1 GigE, POE, C mount
ITA51-GC-20C
Area scan camera 2472 x 2064 MP, Sony IMX547, CMOS Global shutter, 1/1.8", Color, 1 GigE, POE, C mount
LTRN050R45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, red, 630 nm
LTRN050G45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, green, 525 nm
LTRN050B45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, blue, 470 nm
LTRN050W45
Ring LED illuminator, inner diameter 15.2 mm, oblique type, white, 6300 K
LTRN245R45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, red, 630 nm
LTRN245G45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, green, 525 nm
LTRN245B45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, blue, 470 nm
LTRN245W45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, white, 6300 K
LTRN245IR45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, IR, 850 nm
LTRN245UV45
Ring LED illuminator, inner diameter 117.0 mm, oblique type, UV, 365 nm
LTRN245RGBW
Ring LED illuminator, inner diameter 117.0 mm, oblique type, RGBW
Request a quote
Add this product to the quote request list.

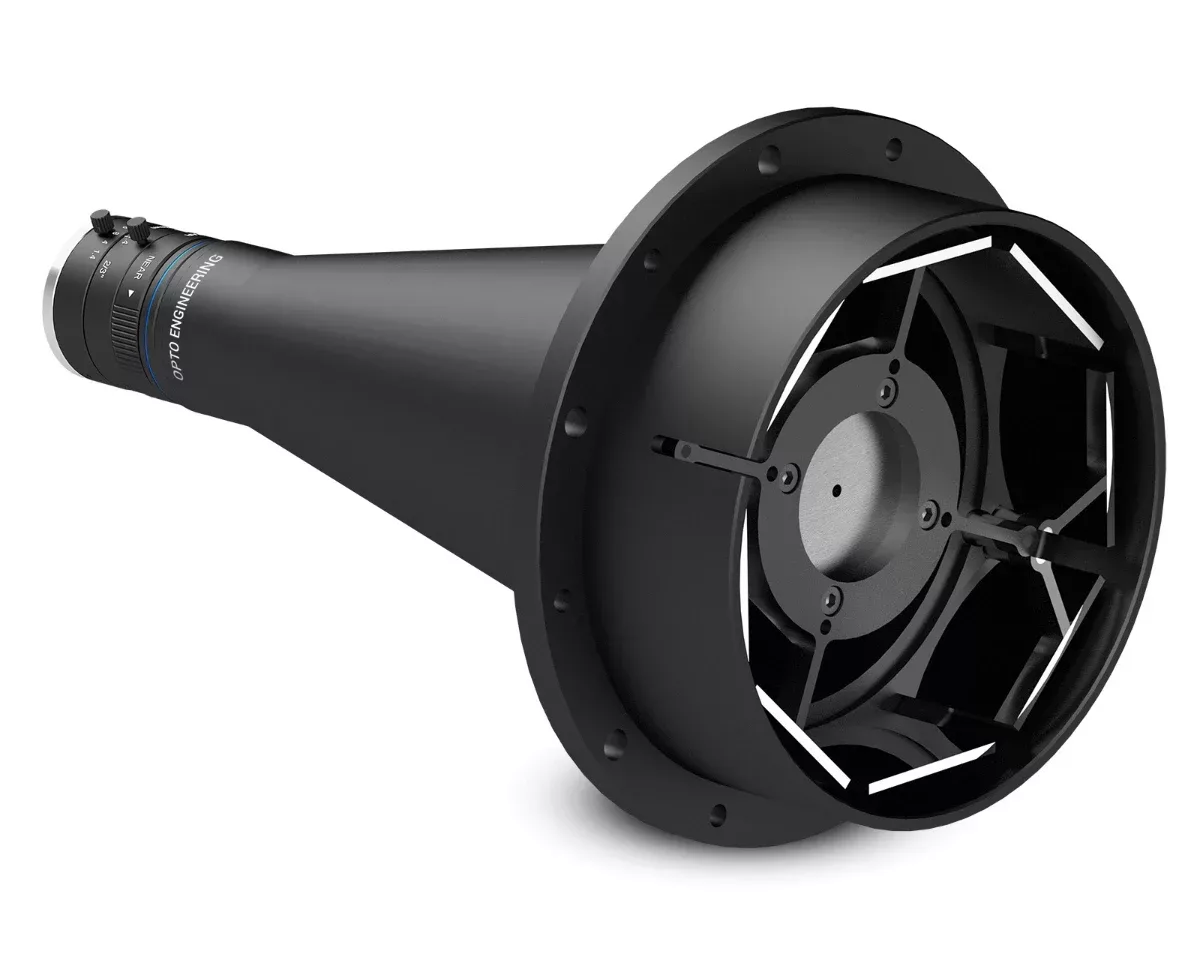

Product images
